Industrial Grade Multi-Stage Bolt Tensioner High Pressure 1500 Bar Steel Hydraulic Bolt Tensioner Supporting OEM/ODM-ENERFLEX®

Description

20 YEARS EXPERIENCE FOR OIL AND GAS PRODUCTS

There are more than 40 products to choose from to meet your every need.

Products Description

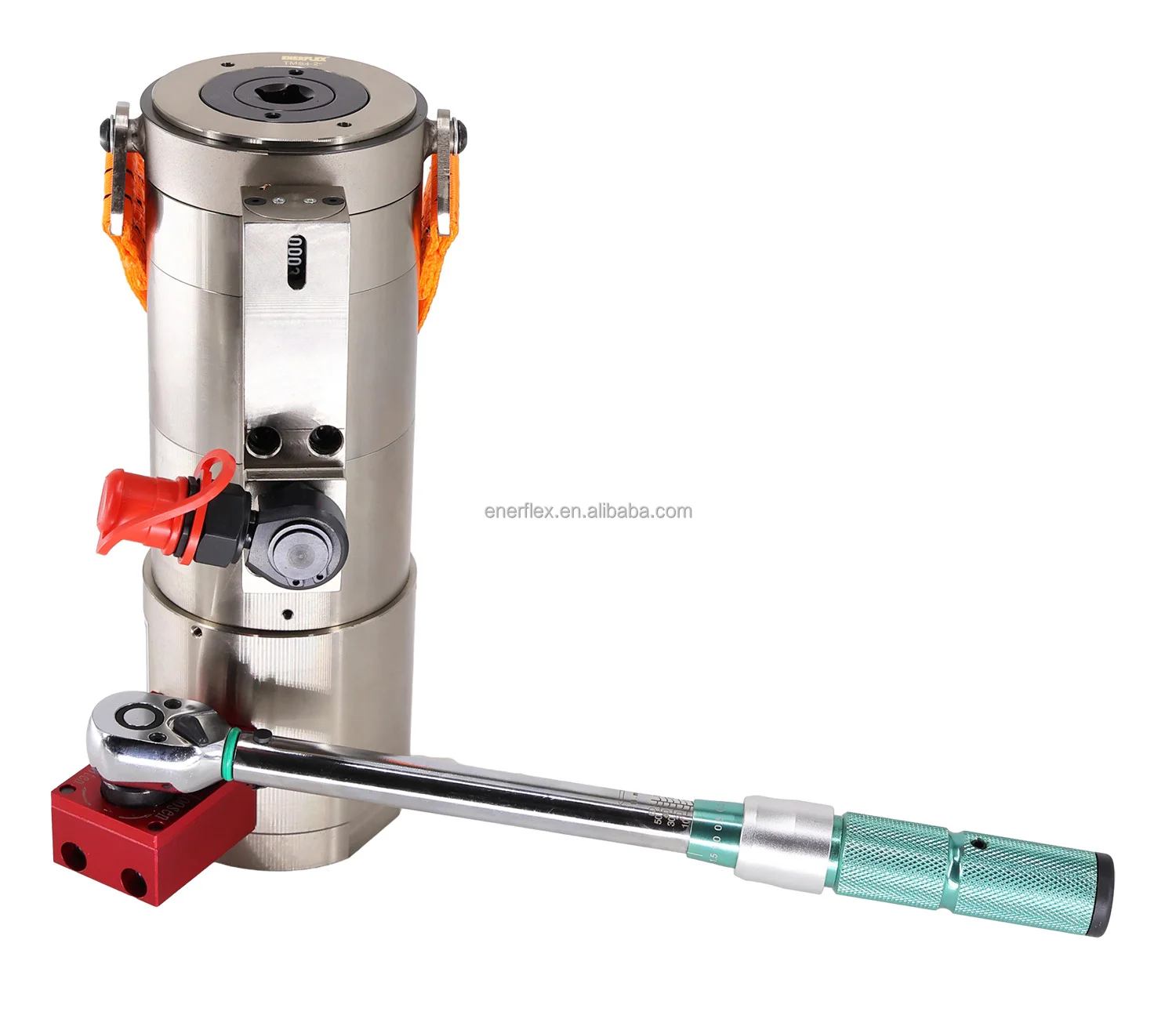

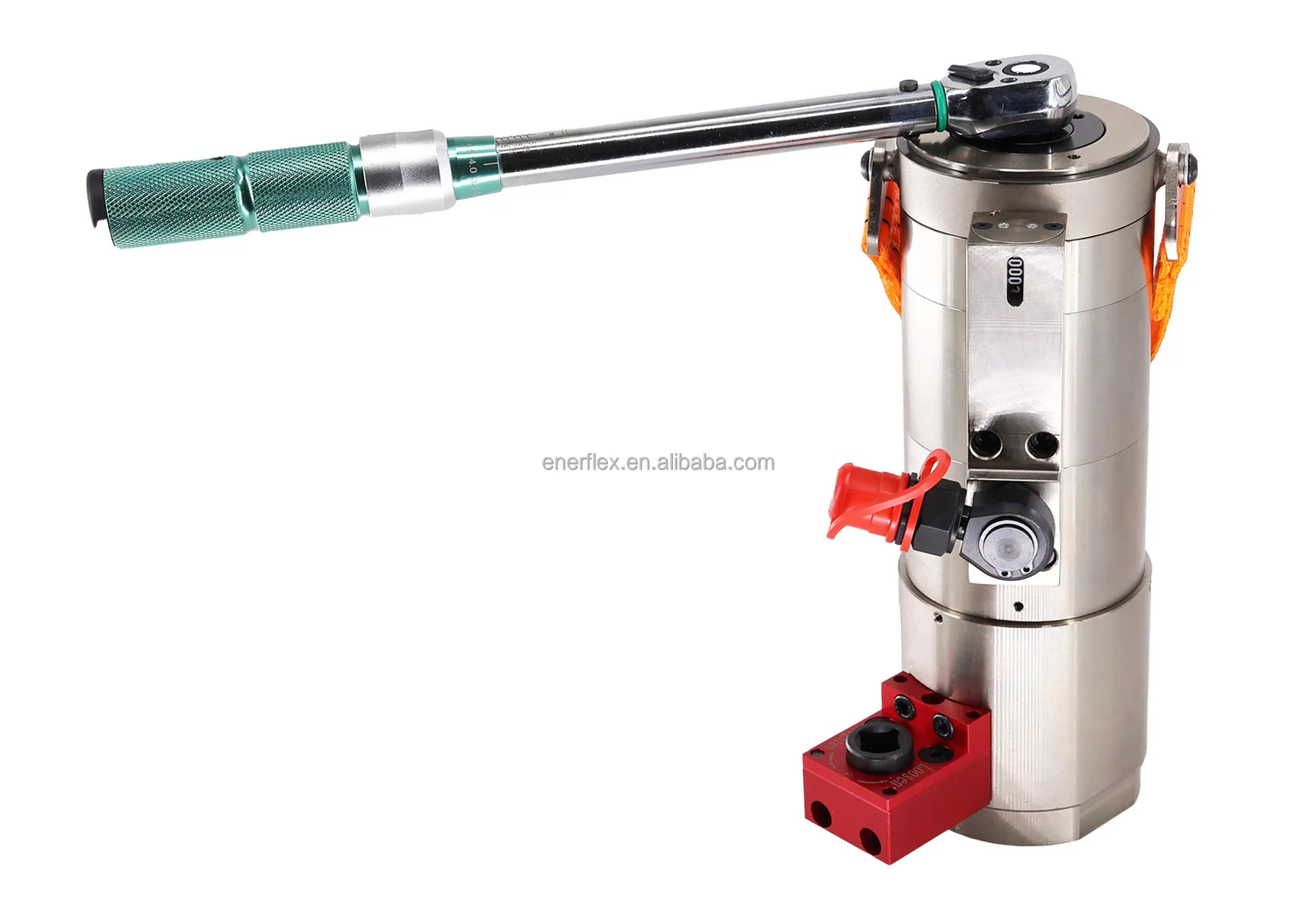

ENERFLEX® TSB Subsea Bolt Tensioner

TMS bolt tensioner is designed and manufactured to meet the highest technical standards, ensuring its reliability and efficiency. It has been extensively utilized in various industries such as the chemical, power, steel, mechanics, and military sectors. Our bolt tensioner is highly adaptable and can be customized to meet the specific needs and working conditions of our customers.

1. Controlled Displacement Mechanism

●Multi-stage Cylinder Design, Increase the tension Length.

2.Big load with small OD.

●Suitable for the operation in limited space.

3. Ultra-High Pressure Architecture● 700-1350bar working pressure.

4. Innovative Coupling Technology●Driven by super high pressure hand pump or electric pump.

5. Advanced Contamination Control

●Intertnally installed explosion-proof device for safety protection.

Model	Maximum Working Pressure Bar	Tools Load KN	Maximum Stroke mm	Effect Area mm²	Outside Diameter mm	Stud Size	Hex Size mm	Weight Kg
TSM 24	1350	307	7	2274	59	M24	36	5
TSM 30	1350	461	7	3417	72	M30	46	6.6
TSM 33	1350	595	7	4407	79	M33	50	8
TSM 36	1350	680	10	5037	84.5	M36	55	10.7
TSM 39	1350	800	10	5926	91.5	M39	60	12.8
TSM 42	1350	922	10	6830	98.5	M42	65	16.1
TSM 45	1350	1086	10	8047	107	M45	70	20.8
TSM 48	1350	1296	10	9604	116	M48	75	22
TSM 56	1350	1660	10	12296	131	M56	85	24
TSM 64	1250	2350	10	18800	147.8	M64	95	47.2
